Panasonic UW363C vs Panasonic PT-FRZ69C
Panasonic UW363C is a 3LCD projector with resolution of WXGA（1280*800）and 3600 lumens. It adopts 3LCD projection technology, using 3 x 0.59 inch chips, with a light source of UHE lamp, lamp lifetime is 5000 hours under normal mode. The contrast ratio is 12000:1.
Panasonic PT-FRZ69C is an excellent projector for engineering use with incredible lumens of 62000 and a resolution of 1920*1200 , adopting DLP projection technology via 0.67 inch chip. Its lase light source provides supreme sharp and vivid images along with life span that is up to 20000 hours under normal mode. The contrast ratio is 10000:1.
Panasonic PT-FRZ69C is brighter than Panasonic UW363C, and the former one is engineering projector and the later one is business projector.
| Product Name |
Panasonic PT-FRZ69CPanasonic UW363C |

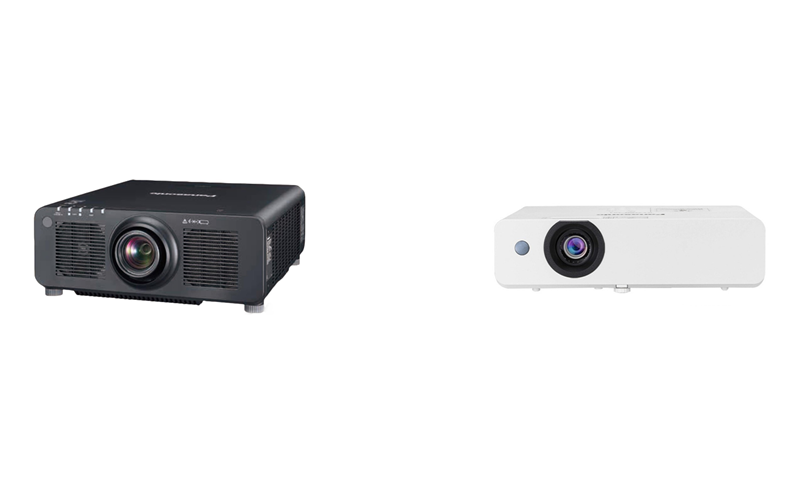

| Product Image |
|
| Price | |
| Our Rating | |
| Brand | Panasonic Panasonic |
| Category | projector projector |
Optical Parameters
  |
|
| Brand Brand | Panasonic Panasonic |
| Brand Model Brand Model | Panasonic PT-FRZ69C Panasonic UW363C |
| Brightness (ANSI lumens) Brightness (ANSI lumens) | 6200 lumens 3600 lumens |
| Display Chip Display Chip | 0.67 inch chip 0.59 inch LCD panel |
| Display Technology Display Technology |
3LCD |
| Standard Resolution Standard Resolution |
WUXGA（1920*1200） WXGA（1280*800） |
| Image Contrast Ratio Image Contrast Ratio | 10000:1 12000:1 |
| Throw Ratio Throw Ratio |
1.7-2.4:1 1.48-1.78：1 |
| Keystone Correction Keystone Correction |
Horizontal: ± 15 degrees, automatic: ± 40 degrees Vertical: ± 30 degrees (automatic, manual) Horizontal: ± 15 degrees (manual) |
| Lamp Life Lamp Life | Normal mode: 20000 hours, energy saving mode: 24000 hours, long life 1 mode: 43800 hours, long life 2 mode: 61320 hours, long life 3 mode: 87600 hours Normal mode: 5000 hours, economic mode: 6000 hours, intelligent power saving mode: 10000 hours |
| Lamp Type Lamp Type |
laser diode |
| Focus technology Focus technology |
Manual focus |
Projection Parameters
|
|
| Product type Product type | Engineering projector Commercial projector |
| Image Size Image Size,projector1 | 50-600 inches, 50-200 inches when et-dle055c is selected, 100-350 inches when et-dle035c is selected, 100-400 inches when et-dle020c is selected 30-300 inches |
| Screen ratio Screen ratio | 16:10 16:10 |
| Projection method Projection method |
Hoisting, horizontal placement, forward projection, rear projection Forward projection, rear projection, table, ceiling |
Ports
|
|
| I/O Connection Ports Connection Ports |
BNC x 1: 3G/HD/SD-SDI HDMI 19 pin x 1 (supports HDCP 2.2, saturated color, 4K signal input) DVI-D 24 pin x 1 (compatible with DVI 1.0, HDCP, single link only) RGB x 1 (BNC x 5): RGB / YPbPr / YCbCr / YC / video D-sub HD 15 pin (Yin) x 1: RGB / YPbPr / YCbCr D-sub 9-pin (negative) x 1 for external control (compatible with RS-232C) M3 × 1 for wired remote control D-sub 9-pin (negative) x 1 Input interface 1 × HDMI input port: HDMI 19-pin 1×Computer 1 Input: D-Sub HD 15-pin (female) (RGB/S-Video/Y·PB(CB)·PR(CR)) 1×Video input: Pin jack 1×computer 2 input: D-sub 9-pin (female) (RGB) 1 x Audio Input 1: M3 (L, R) 2 x Audio Input 2: Pin jack (L/R) Output interface 1×Monitor output: D-Sub 15-pin (female) (RGB) 1×Audio output: M3 (L/R) Control interface 1×USB A 1 x USB B 1×LAN: RJ-45 Serial input: D-Sub 9-pin (female) (for external control (compatible with RS-232C)) |
Other
|
|
| Size(HxWxD) Size(HxWxD) | 498×200×538mm 335×96×252mm |
| Power Usage Power Usage | Normal mode: 565, fast boot mode: 110W, standby power: 0.5W 295w, normal standby power: 6W, energy-saving standby power: 0.5W |
| Noise Level Noise Level | Normal mode: 35dB Normal mode: 37db, economic mode: 1:33db, economic mode: 2:28db |
| Machine weight Machine weight | 2.9kg |
| Accessories Accessories |
Panasonic uw363c x1 power cord x1 Wireless remote control unit x1 Remote control battery (R03 / LR03 / AAA battery) x2 RGB connector x1 Software CD-ROM x1 an instruction manual x1 |
| Warranty Warranty |
2 years 2 years |
